Heat Resistant Braided Steam Hose

Name: Heat Resistant Braided Steam Hose
Brand: LETONE
Price: 1 USD

China Heat Resistant Braided Steam Hose wholesale

Brand Name : LETONE

Model Number : LT786

Certification : SAE 100R3

Place of Origin : CHINA

MOQ : 100 Meter

Price : 1USD-20USD

Payment Terms : T/T

Supply Ability : Annual output of 5000,000 meters

Delivery Time : Within a month

Packaging Details : Plastic stretch film or carton

Applications : Suitable for continuous delivery of saturated steam

Tube : Black heat-resistant synthetic rubber

Reinforcement : One or two layers of braided fiber or steel wire

Cover : Heat-resistant, weather-resistant, wear-resistant synthetic red rubber, steam pipe body equidistant puncture

Temperature Range : -40℃ to +150℃ (-13℉ to +302℉)

Brand : LETONE

Contact Now

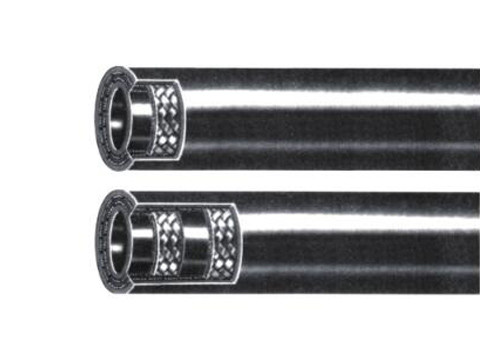

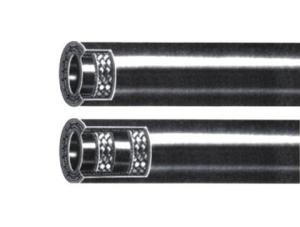

LT786 WIRE BRAID STEAM HOSE

Applications: Suitable for continuous delivery of saturated steam and hot water at temperatures below 150 °C or intermittent delivery at temperatures below 160 °C.(Overheated steam will reduce the service life of the product; the vacuum caused by the closed hose assembly ends will cause "popcorn phenomenon" or delamination of the inner glue)

Tube: Black heat-resistant synthetic rubber

Reinforcement: One or two layers of braided fiber or steel wire

Cover: Heat-resistant, weather-resistant, wear-resistant synthetic red rubber, steam pipe body equidistant puncture

Temperature Range: -40℃ to +150℃ (-13℉ to +302℉)

Parameter

SIZE(Dash)	SIZE(in.)	I.D. (mm)		O.D.	Max.W.P.	Min.B.P.
SIZE(Dash)	SIZE(in.)	Min	Max	(mm)	(MPa)	(MPa)
-6	3/8—1	9.8	10.8	22	0.4	3
-8	1/2—1	12.7	13.7	24	0.4	3
-10	5/8—1	15.5	16.5	27	0.4	3
-12	3/4—1	18.5	20.0	30	0.4	3
-16	1—1	24.5	26.0	38	0.4	3
-20	1 1/4—1	31.5	33.0	46	0.4	3
-24	1 1/2—1	37.5	39.0	51	0.4	3
-32	2—1	50.0	52.0	64	0.4	3
-6	3/8—2	9.8	10.8	23	0.4	3
-8	1/2—2	12.7	13.7	27	0.4	6
-10	5/8—2	15.5	16.5	29	0.4	6
-12	3/4—2	18.5	20.0	32	0.4	6
-16	1—2	24.5	26.0	39	0.4	6
-20	1 1/4—2	31.5	33.0	47	0.4	6
-24	1 1/2—2	37.5	38.0	52	0.4	6
-32	2—2	50.0	52.0	89	0.4	6
